95x50 LED Backlight Lighting With White Red Blue Color 50000 Hours Lifetime

Product Categories

Interled Optoelectronics Technology Ltd.

Contact Now

95x50 LED Backlight Lighting With White Red Blue Color 50000 Hours Lifetime

Name: 95x50 LED Backlight Lighting With White Red Blue Color 50000 Hours Lifetime
Brand: Interled
Price: 1 USD

Brand Name : Interled

Model Number : BL002-093047XX-01

Certification : RoHS

Place of Origin : China

MOQ : 2000

Payment Terms : T/T

Supply Ability : 500KK per month

Delivery Time : 3-4 weeks

Packaging Details : Carton box

Color : White, Red, Blue...

Colour : White, Red, Amber, Blue...

Mounting : THT (Through-Hole Technology)

Lifetime : 50000Hrs

Contact Now

95x50 LED Backlights Description

LED backlights are a very unique type of LED. These LEDs are embedded in a special light diffusing plastic, which gives them a nice even glow over a large flat area. Typically these LED panels are used behind small character displays, but on their own they can be used for a variety of applications where a large, even, backlighting effect is desired. The LED would be considered a cool white color; gels can be applied to change the color as needed.

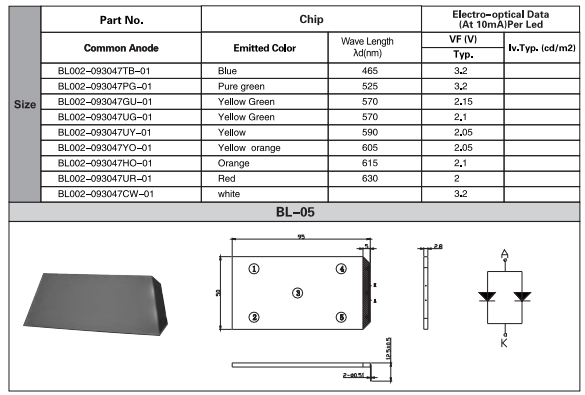

Selection Guide

Part No.	Color		Electro-optical Data (At 10mA)(per LED)		Drawing No.
Common Anode	Emitted Color	Wave Length	VF (V)	Iv.Typ. Per.Seg. (mcd)
Common Anode	Emitted Color	λD(nm)	Typ.	Iv.Typ. Per.Seg. (mcd)
BL002-093047TB-01	Blue	465	3.2		BL-05
BL002-093047PG-01	Pure green	525	3.2
BL002-093047GU-01	Yellow Green	570	2.15
BL002-093047UG-01	Yellow Green	570	2.1
BL002-093047UY-01	Yellow	590	2.05
BL002-093047YO-01	Yellow orange	605	2.05
BL002-093047HO-01	Orange	615	2.1
BL002-093047UR-01	Red	630	2
BL002-093047CW-01	white		3.2
